Remarkably, the largest rotorcraft in service can lift more than an average dump truck in a single sling load. That scale reshapes how teams move turbines, generators, and emergency supplies in places where roads fail.
The roundup names the Mil Mi-26, CH-53K King Stallion, and CH-47F Chinook among the leading platforms by MTOW and external lift. It compares civil workhorses like the S-64 Skycrane and Kamov Ka-32 to military movers so planners can match capability to mission.
Readers will learn how external load precision, internal bay size, and range affect choices for urban construction, offshore transport, and disaster relief. The piece also explains why U.S. operations blend military and civil airframes to cover diverse needs.
Key Takeaways
- Top models are ranked by MTOW and external lift to guide selection.
- Choices vary by role: construction, cargo transport, and emergency ops.
- Modern avionics and rotor design expand performance in tough conditions.
- Lifecycle and production status influence availability for U.S. operations.
- Precision external-lift specs matter more than raw MTOW for many jobs.

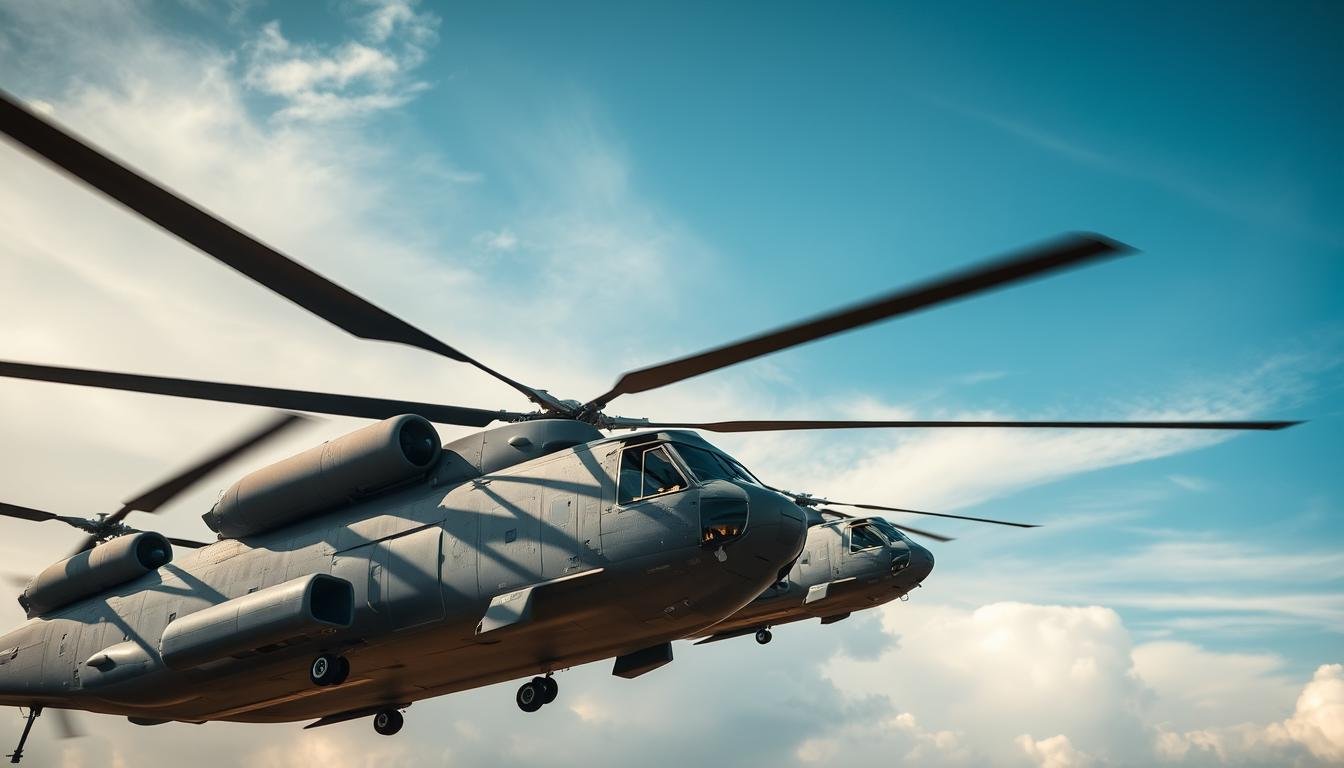

Heavy-Lift Helicopters Overview
Across civil and military fleets, a small group of large rotorcraft defines what is possible for oversized transport and construction lifts. These machines range from the Mil Mi-26 — the world’s largest serial-production model — to medium civil types like the AS332 Super Puma and the S-92.
Their lift and payload capacity determine which aircraft suit a mission. External sling limits and internal bay volume affect whether a load flies beneath the fuselage or inside the cabin.
- Design choices — rotor system, power margins, and materials — shape hot-and-high and sustained hover performance.
- Military models such as the CH-53K and CH-47F provide high external lift and range for troop and cargo operations worldwide.
- Civil types serve construction, offshore transport, and disaster response where precise external loads and certification matter.
Operational planning ties the technical numbers to real work: MTOW, external load limits, range, and hover capability determine whether an aircraft can complete the job safely and on budget.
Military Heavy-Lift Leaders: Mi-26, CH-53K King Stallion, CH-53E Super Stallion, And CH-47F Chinook
Top military models combine raw power, range, and modern systems to move massive cargo in difficult conditions. This group sets mission expectations for relief, disaster response, and tactical transport.
Mil Mi-26 “Halo”: World’s Largest With 20,000 Kg External Lift And Record-Setting Capacity
The mil mi-26 remains the world largest serial-production rotorcraft with MTOW around 56,000 kg and up to 20,000 kg external lift.
First flown in 1977, it uses an eight-blade main rotor and set an FAI record lifting 56,768.8 kg to 2,000 m in 1982.
Sikorsky CH-53K King Stallion: Next-Gen Power, 36,000 Lb External Lift, U.S. Marine Corps Operations
The ch-53 king stallion brings three GE T408 engines, fly-by-wire controls, and a wider cargo bay for modern operations.
With a 38,600 kg MTOW and 16,329 kg external capacity, it improves payload and range for USMC missions. See full technical details on the CH-53K program page.
Sikorsky CH-53E Super Stallion: Proven Heavy Lift For Logistics, Humanitarian, And Search And Rescue
The legacy sikorsky ch-53 Super Stallion has a long record in logistics and relief, including Hurricane Katrina and Haiti operations.
It remains valuable for surge lift and search-and-rescue where established tactics and crews shorten response time.
Boeing CH-47F Chinook: Tandem-Rotor Efficiency For Troop And Cargo Transport
The CH-47F uses a tandem-rotor design to balance internal bay volume with about 9,000 kg external lift and a 22,680 kg MTOW.
Its efficiency and availability make it a go-to for troop moves, cargo sorties, and disaster relief where rapid cycles matter.
“Range and payload choices determine which aircraft planners assign to specific disaster and combat missions.”
| Aircraft | MTOW (kg) | External Lift | Notable Role |
|---|---|---|---|
| Mil Mi-26 | 56,000 | Up to 20,000 kg | Exceptional mass moves, Chernobyl drops |
| CH-53K King Stallion | 38,600 | 16,329 kg (36,000 lb) | USMC heavy transport, modernized production |
| CH-53E Super Stallion | — (legacy) | High surge lift | Humanitarian & SAR |
| CH-47F Chinook | 22,680 | ~9,000 kg | Tandem-rotor cargo & troop transport |
Civil And Dual-Use Workhorses For Construction, Firefighting, And Remote Transport
Modern civil platforms bridge gaps between ground crews and sites that lack road access. They balance precise hover control, payload geometry, and range to place equipment or fight fires where cranes cannot reach.
Sikorsky S-64 Skycrane: Precision Aerial Crane For Construction And Firefighting
MTOW 21,772 kg; up to 9,071 kg external. The S-64 excels at HVAC and modular lifts and rapidly converts to carry suppression systems for firefighting.
Kamov Ka-32: Coaxial Rotor Control For Firefighting, SAR, And Urban Operations
MTOW 11,000 kg; up to 7,000 kg external. Its coaxial rotor offers stable hover in tight urban canyons and supports search rescue operations and wildfire suppression.
Boeing Vertol 234 Chinook: Civilian Heavy Lift With Long Range And Stable Transport
MTOW 31,750 kg; up to 11,340 kg external. A civil Chinook variant delivers long range cargo runs and steady tandem-rotor lift for logging and remote resupply.
Airbus AS332 Super Puma, Sikorsky S-92, And Kaman K-Max
The AS332 (MTOW 9,800 kg; 4,800 kg external) pairs modernized avionics and autopilot for offshore SAR and transport. The S-92 (MTOW 12,500 kg; 4,500 kg external) prioritizes redundancy for oil-and-gas rotations and VIP moves.
The K-Max K-1200 is an external load specialist with intermeshing rotors and up to 6,000 lb lift, ideal for logging and precision material placement.
- Crew choices often hinge on cargo shape, sling length, and downwash impacts.
- Operators weigh availability, parts support, and turn times during wildfire or construction seasons.
For more model comparisons and service histories, see an industry roundup and a guide to different aircraft types.
Specs And Capacities At A Glance: Weights, External Lift, Roles, And Status
Specs condense complex performance numbers into the quick facts planners use to compare models. This section lists key figures so decision-makers can match an aircraft to a specific transport or construction task.
Maximum Takeoff Weight And Payload: From Medium Lift To World Largest Rotorcraft
Maximum takeoff weight ranges from the AS332 at 9,800 kg to the mil mi-26 at 56,000 kg.
Payload and internal bay size determine whether a load flies inside or under the fuselage.
External Lift Capacity And Primary Roles: Military Transport, Firefighting, And Construction
External lift capacity aligns with roles: CH-53K (16,329 kg) and CH-47F (9,000 kg) serve tactical transport and cargo cycles.
Civil types such as the S-64 (9,071 kg) and Vertol 234 (11,340 kg) focus on construction picks and rapid project turnarounds.
Status And Production: Active Platforms Versus Retired Legends
Most listed models are active in 2025, with CH-53K in full-rate production after 2024 approval, and the Mi-26 still in service.
Retired names like the Mi-6 and Mi-10 shaped the modern design and maintenance history of current systems.
- Quick comparisons: MTOW, external lift, and payload guide shortlisting.
- Support matters: engines, transmissions, and rotor architecture drive cycle times and sustainment.
- Further reading: consult the top models list and a practical moving equipment guide for procurement context.
| Aircraft | MTOW (kg) | External Lift (kg) | Status |
|---|---|---|---|
| Mil Mi-26 | 56,000 | 20,000 | Active |
| CH-53K | 38,600 | 16,329 | Active, production |
| CH-47F | 22,680 | 9,000 | Active |
| S-64 | 21,772 | 9,071 | Active |
Real-World Use Cases In The United States: Disaster Relief, Firefighting, Construction, And Energy
When storms or tremors sever ground routes, air platforms become the fastest link for relief and repair. U.S. missions lean on proven aircraft to move shelters, generators, and medical cargo into areas cut off by floods or earthquake aftershocks.
Disaster Relief And Firefighting: Rapid Lift For Earthquake And Wildfire Operations
In disaster response, the CH-47F is often tasked with rapid cargo drops and shelter placement. The CH-53E has historical records supporting Hurricane Katrina and Haiti relief efforts.
Firefighting operations use the S-64 Skycrane and Ka-32-type platforms for fast water and retardant delivery. These aircraft work under incident command with tight airspace deconfliction to keep crews safe.
Construction And Energy: HVAC, Prefab Materials, Offshore Transport, And Wind Projects
Urban construction projects use aerial picks to place HVAC units and prefab materials where cranes would disrupt traffic. Civil Vertol 234 variants serve remote cargo runs in Alaska and northern Canada.
Offshore energy relies on S-92 and AS332 class aircraft for crew and cargo transport to rigs under strict safety regimes. Wind farms and remote infrastructure employ external lifts for hubs, blades, and tower sections when roads cannot deliver materials.
- Mission planning covers LZ surveys, rigging plans, sling length, and ground marshaling.
- Permits, documentation, and public safety plans are integrated early for urban operations.
- After-action reviews refine lift plans and ensure compliance with U.S. regulatory standards.
For an in-depth look at how air support saves lives in disaster zones, see air support in rescue missions.
Technology, Avionics, And Systems Advancements Driving Heavy Lift Performance
System-level advances—from flight controls to gearboxes—are driving measurable gains in lift and safety. Modern avionics suites deliver precise hover control, automated navigation, and envelope protection that cut pilot workload during complex external lifts.
The CH-53K now pairs three GE T408 engines with digital flight controls and efficiency enhancements that raise payload margins. The Mi-26 retains a high-capacity split-torque gearbox and an eight-blade main rotor, enabling exceptional lift for massive loads.
Upgrades to civil types matter too. The AS332 benefits from enhanced autopilot modes and crash-absorbing seating that improve survivability and mission readiness.
“Modern avionics and integrated systems shorten turn times and increase mission predictability.”
Systems integration—from health monitoring to FADEC—boosts reliability and allows data-driven maintenance. Advanced autopilots and stability augmentation make sling operations and instrument approaches safer in low visibility.
- Rotor and transmission design reduce vibration and improve power transfer in hover out of ground effect.
- Sensor fusion and modern displays raise situational awareness for confined-area work and shipboard ops.
- Modular mission systems let operators add winches, firefighting tanks, or SAR kits without crippling core lift.
For a technical look at autonomy and control trends, see this overview of autonomous systems in helicopter operations and a practical review of how advances in avionics are improving.
How To Choose The Right Heavy Lift Helicopter For Your Mission
Selection begins with the load. Start by noting the exact weight, dimensions, and center of gravity of the cargo. Confirm the maximum takeoff weight and certified external capacity for candidate aircraft before shortlisting.
Payload, Range, And Mission Profile: Matching Capacity To Load And Distance
Compare certified external lift to the load plus rigging. For hot/high work, use the CH-53K (16,329 kg external) as a planning anchor. For medium-heavy multi-role cycles, reference the CH-47F (≈9,000 kg external).
Assess the operational range with reserves and turn times. External loads cut range versus ferry profiles, so plan fuel and staging accordingly.
Operating Environment, Support, And Cost: Hot/High, Overwater, And Maintenance Systems
Factor environment: hot/high, overwater legs, or confined urban sites changes performance and rigging needs. Use the S-64 (9,071 kg) for precision construction picks and the Vertol 234 (11,340 kg) for civil heavy haul planning.
- Verify ground equipment and rigging compatibility with operator procedures.
- Confirm parts support and crew experience for similar operations.
- Compare true cost: staging, ferry time, fuel logistics, and contingency days.
- Request prior lift sheets and after-action reports to benchmark real-world performance.
“Prioritize conservative safety margins for temperature, wind, and long-sling work.”
| Planning Anchor | Typical External Lift (kg) | Primary Use |
|---|---|---|
| CH-53K | 16,329 | High/hot heavy transport |
| CH-47F | ~9,000 | Medium-heavy multi-role transport |
| S-64 Skycrane | 9,071 | Precision construction & firefighting |
| Vertol 234 | 11,340 | Civil heavy haul |
For a deeper selection guide and operator criteria, review a practical checklist on choosing the right helicopter for your.
The Road Ahead: Materials, Autonomy, And Power Systems Shaping Future Heavy Lift
Advances in structure, propulsion, and control are rewriting what next-gen rotorcraft can carry and where they can fly.
New materials and joining techniques cut structural weight while keeping durability. That balance lets teams boost useful loads or extend range without raising risk.
Power systems are moving toward hybrid-electric assists and cleaner turboshafts to lower fuel use and maintenance. These changes improve mission economics and reduce emissions.
- Autonomy and advanced flight controls will enable supervised cargo routes and repeatable lifts in poor weather.
- Rotor and blade innovations will cut noise and improve aeroelastic performance near urban sites and critical infrastructure.
- Modular systems let operators reconfigure an aircraft quickly for firefighting, SAR, or construction roles.
Production strategies will balance upgrades to proven fleets with paced introductions of new aircraft. Operational data sharing will tighten performance envelopes and best practices across the world.
“Certification pathways must evolve to match novel propulsion and autonomy while keeping safety paramount.”
Outlook: Over the next decade these trends should raise lift efficiency, lower cost per ton-mile, and make aerial operations more resilient and predictable for U.S. missions.
Final Thoughts
A compact fleet of large rotorcraft delivers the lift and precision most U.S. projects require. From the Mi-26’s unmatched 56,000 kg MTOW and 20,000 kg external capacity to the CH-53K King Stallion in full-rate production, options cover extreme and routine needs.
Planners should weigh maximum takeoff weight, certified capacity, and payload geometry against range and staging. Matching an aircraft to construction, firefighting, search rescue operations, relief, or military transport reduces risk and cost.
For details on the CH-53K’s capabilities and production status, see the CH-53K King Stallion overview via Sikorsky CH-53K King Stallion.
FAQ
What distinguishes the Sikorsky CH-53K King Stallion from earlier CH-53 variants?
The CH-53K King Stallion uses three GE38-1B turboshaft engines, composite rotor blades, and modernized avionics to deliver roughly 36,000 lb of external lift. It improves payload, range, and maintainability versus the CH-53E Super Stallion, enabling the U.S. Marine Corps to move heavier equipment directly to austere sites.
How does the Mil Mi-26 compare in capacity to Western designs?
The Mil Mi-26 remains the world’s largest production rotorcraft by gross weight and external lift. It can carry up to around 20,000 kg externally and move outsized loads that other platforms cannot, making it ideal for strategic transport, disaster relief, and heavy industry tasks where single-lift capability is critical.
Which models are best for firefighting and precision construction lifts?
The Sikorsky S-64 Skycrane excels at precision aerial crane work and large water or retardant drops. The Kamov Ka-32 provides excellent maneuverability in urban and mountainous firefighting thanks to its coaxial rotors. Choice depends on load type, accuracy needs, and access to ground support.
What roles does the CH-47F Chinook serve in military and civilian operations?
The Boeing CH-47F Chinook serves troop movement, sling-load cargo transport, medevac, and disaster response. Its tandem-rotor design gives stable payload carriage and long-range performance, making it valuable for both military logistics and civil utility missions like bridge component delivery or offshore support.
Are there heavy‑lift options for remote energy and windfarm construction?
Yes. Platforms such as the CH-47F, S-64 Skycrane, and select S-92 configurations support turbine component lifts, offshore module placement, and remote site logistics. Operators match payload, reach, and precision to the turbine segment and environmental restrictions.
What factors determine maximum takeoff weight and payload limits?
Engine power, rotor design, airframe structural limits, fuel load, and environmental conditions (temperature and altitude) set maximum takeoff weight and usable payload. Operators calculate mission weight balancing fuel, crew, and external loads to stay within safe envelope limits.
How do avionics and automation improve heavy lift safety and efficiency?
Modern avionics deliver digital flight controls, situational awareness, onboard diagnostics, and automated load-management functions. These systems reduce pilot workload during complex sling operations, improve single-pilot capability in some platforms, and shorten maintenance turnaround through predictive analytics.
What maintenance and support considerations affect operating cost?
Engine time between overhaul, spare parts availability, ground support equipment, and required maintenance personnel drive life-cycle cost. Fleet commonality and manufacturer support contracts can lower logistics burden. Remote operations require robust field-repair plans and spares staging.
Which platforms are best suited to search and rescue (SAR) missions?
The Sikorsky S-92 and Airbus AS332 Super Puma provide proven SAR capability with redundant systems, long range, and cabin room for survivors and medical teams. CH-53 variants also conduct SAR when heavy external lift or hoist capability is needed in military or large-scale civilian missions.
How do environmental conditions like hot/high altitudes affect lift performance?
High temperature and altitude reduce air density, lowering engine power and rotor thrust. That decreases payload capacity and demands longer takeoff runs. Operators must derate loads, plan for additional fuel stops, or use higher-power platforms like the CH-53K when missions require hot/high performance.
What certifications or regulations govern civilian operation of these rotorcraft?
Civil operations follow Federal Aviation Administration (FAA) or equivalent national authority rules covering airworthiness, pilot qualifications, maintenance, and specialized operations such as external load work. Aircraft type certification and supplemental type certificates may apply for mission equipment.
Can heavy rotorcraft perform long-range external lift missions without refueling stops?
Range depends on payload and fuel load trade-offs. Some missions require ferry fuel tanks or aerial refueling in military variants. For civilian lifts, operators plan refueling stops or use aircraft with sufficient internal fuel and efficient cruise settings to meet mission distance requirements.
What emerging technologies will most impact future heavy lift capability?
Advances in composite materials, hybrid-electric propulsion, autonomous flight controls, and improved turbine efficiency will raise payload-to-weight ratios, reduce operating costs, and enable more precise, safer lift operations. These trends will reshape both military and civil transport roles.
How should an operator choose the right platform for a specific mission?
Operators assess required payload, range, operating environment (overwater, hot/high, urban), precision needs, and support infrastructure. They then match those criteria to platform capabilities—payload capacity, rotor/engine performance, avionics, and maintenance network—to select the most cost-effective option.
Are there dual‑use aircraft suitable for both military and commercial tasks?
Yes. The CH-47F Chinook and several Sikorsky models, including modified S-64 and S-92 types, serve in both military and civilian roles. Dual-use platforms often undergo mission-specific outfitting to meet regulatory, safety, and contractual requirements across sectors.
What role do these aircraft play in disaster relief after earthquakes and floods?
They move heavy generators, bridge sections, medical equipment, and relief supplies quickly into cut-off areas. Large rotorcraft can also evacuate damaged infrastructure sections and perform aerial delivery or sling-load placement where roads are impassable, accelerating recovery operations.and heli-logging, these helicopters provide unique capabilities that make them indispensable in a wide range of operations. As technology continues to advance, the role of heavy-lift helicopters will only grow, ensuring that they remain a critical asset in moving large cargo and supporting global industries.
Related Articles
- Medical Transport Helicopters: Critical Features and Models for Emergency Flights
- Helicopter Drones: The Future of Unmanned Aerial Systems
- Helicopters for Offshore Oil and Gas Operations: Transporting Workers and Equipment
- Helicopters in Tourism: The Best Models for Scenic Tours
- Helicopters for Police and Law Enforcement: Surveillance and Patrol Capabilities
More from This Category
- The Evolution of Attack Helicopters: Key Models and Their Capabilities
- Utility Helicopters: The Workhorses of the Sky
- Trainer Helicopters: The Best Models for Learning to Fly
- Helicopters for Aerial Photography and Filmmaking: Top Picks for Capturing the Perfect Shot
- Luxury Helicopters: The Best Models for Private and Corporate Use
- Heavy Lift Helicopters: Moving Large Cargo and Equipment
- Agricultural Helicopters: Aerial Spraying and Crop Management
- Rescue and EMS Helicopters: How They Save Lives in Critical Situations
- Military Helicopters: Key Models and Their Combat Roles
- The Different Types of Helicopters: From Light Utility to Heavy Lift
