One startling fact: by 1942 a production rotorcraft was in service, less than a decade after practical tests proved vertical flight could work at scale.
The narrative traces how simple spinning toys and sketches by leonardo vinci inspired engineers to chase true vertical lift. Early experiments showed that a powered rotor could let an aircraft rise, hover, and move in any direction without a runway.
Critical breakthroughs came with the Focke-Wulf Fw 61 in 1936 and Igor Sikorsky’s VS-300 tests from 1939 to 1943. Those trials led to the R-4 in 1942, the first mass-produced model that set the template for single main rotor plus tail rotor design.
Why it mattered: advances in engine power, transmissions, and controls turned concepts into reliable machines used worldwide. This section frames key models, dates, and technical terms to prepare readers for deeper analysis of design, flight, and development in later parts.
Key Takeaways
- The guide begins with the History of Helicopters and explains early inspirations to modern aircraft.
- Rotors enable vertical takeoff, hovering, and multidirectional flight without runways.
- Fw 61, VS-300, and R-4 mark major turning points in helicopter development.
- Single main rotor with a tail rotor became the dominant helicopter design.
- Improvements in engines and controls drove gains in speed, safety, and use worldwide.
History Of Helicopters: Setting The Stage For Vertical Flight
Engine-driven rotors transformed theoretical lift into practical vertical flight. This guide established what a helicopter was within aviation by defining it as an aircraft that relied on a rotor system to generate lift and thrust without wings or runways.
User Intent And What This Ultimate Guide Covers
The guide answered readers seeking a clear, past-tense account of key models, inventors, and system breakthroughs. It promised a focused review of major milestones in helicopter development and the roles these machines played across civil and military use.
Defining Helicopters And Their Place In Aviation
At its core a helicopter used a main rotor for lift and a tail or alternative anti-torque device to control yaw. Primary controls included cyclic, collective, anti-torque pedals, and throttle; the swashplate changed blade pitch for cyclic and collective inputs.
Why this mattered: the interaction of engine, transmission, rotor, and controls determined flight direction, speed, and the pilot’s ability to hold position over ground. Readers were set up to learn terms like precession and anti-torque systems in later technical chapters.
For a quick set of surprising facts that complement this setup, see top helicopter facts.
From Toys To Theory: The Chinese Top And Early Inspirations
Early toys that spun into the air provided concrete proof that rotating blades could lift a small craft. The simple Chinese top rose when twirled by hand, a cord, or a spring and became a lasting physical model for rotor lift.
The Chinese Top As The First Rotorcraft Model
The toy demonstrated how a small rotor pushed air downward so the object climbed from the ground.
Builders varied designs: hand‑twirled shafts, rubber bands, springs, and cords all powered these models.
The 1784 Academy Sciences Demonstration
In 1784 Launoy and Bienvenu presented a feathered, coaxial device at the academy sciences. The model crossed a room under stored energy and then descended, thrilling observers.
Why it mattered: coaxial rotors cut torque reaction, giving steadier behavior in models and suggesting a path toward larger aircraft. Then, inventors and workshops across the world used these simple devices to test lift, drag, and direction control.
- Practical insight: the toy showed that a small machine could generate lift in the air.
- Limitations: lack of lightweight power kept most experiments at low altitude for years.
- Legacy: these early designs formed the conceptual groundwork for later helicopter work.
Leonardo Da Vinci’s Aerial Screw And Early Helicopter Concepts
Leonardo vinci sketched a spiraled lifting device that aimed to turn human effort into upward motion.
The Italian Engineer’s Sketches, Materials, And Power Ideas
As an italian engineer and inventor, he drew an aerial screw built from reeds, linen, and wire. The drawings show multiple operators turning cranks to spin a helical surface.
He proposed that, if spun fast enough, the helix would push against the air so the machine could climb. Leonardo also tested small models and spring ideas but found human power limited.
Helix To Helicopter: Etymology And Conceptual Legacy
The term “helicopter” later combined Greek helix and pteron, echoing his spiral concept. His studies of wings and propellers influenced later rotor and design thinking.
| Aspect | Leonardo’s Concept | Limitations | Legacy |
|---|---|---|---|
| Materials | Reeds, linen, wire | Weak structure, heavy for lift | Inspired lightweight design thinking |
| Power | Human cranks, springs | Insufficient sustained torque | Highlighted need for engines |
| Concept | Helical rotor | No practical flight in that century | Framework for later rotor development |
Why it mattered: though the drawings did not fly, they seeded ideas that shaped later helicopter development. Leonardo’s work linked rotary motion to lift and set a conceptual path for future flight innovations.
Eighteenth-Century Advances: Lomonosov, Launoy, And Bienvenu
Mikhail Lomonosov and his contemporaries moved rotor study from curiosity to measured experiment. They built compact machines that let engineers observe how spinning surfaces reacted in air.
Mikhail Lomonosov’s Counter‑Rotating Spring Device
Lomonosov crafted a spring‑powered device with two rotors turning in opposite directions to cancel torque. This practical model showed that paired rotors could neutralize the twisting force that otherwise made a machine rotate uncontrollably.
Spring power delivered only brief runs, but the test proved stability and hinted at a system that later helicopter designers adopted.
Launoy & Bienvenu’s Feathered Coaxial Rotors
In 1784 Launoy and Bienvenu presented a feathered, coaxial rotor model to the academy sciences. They used a twisted bowstring to store energy and launch a balanced demonstration.
The presentation highlighted aerodynamic benefits for balance and control and brought formal validation that encouraged more research into aircraft power and stronger structures.
Key Takeaway: These eighteenth-century experiments advanced understanding of rotor behaviour, torque management, and early system design—establishing a technical path toward controlled vertical flight.
Nineteenth-Century Ideas And The Language Of “Helicopter”
The nineteenth century turned scattered rotor experiments into a recognizable concept and a new word in aviation.
Gustave Ponton d’Amécourt coined the French term hélicoptère in 1861, drawing from Greek helix and pteron. That name gave writers and engineers a shared label for rotor-driven aircraft.
Inventors kept testing devices and proposals but hit a clear limit: power-to-weight. Small models flew. Human-carrying craft waited until internal combustion engines improved.
“The new word helped standardize discussion and steer design work toward viable powerplants.”
The century linked leonardo vinci’s helix idea to practical debates on machine layout and rotor control. Public interest and scientific societies fueled a world of designs.
- Term adoption made communication across inventor communities easier.
- Engine progress slowly shifted feasibility for sustained flight.
- Years of iterative work set the stage for twentieth-century breakthroughs.
| Aspect | Impact | Outcome |
|---|---|---|
| Terminology | hélicoptère enters technical language | Standardized references for rotor craft |
| Technology | Engines improve power-to-weight | Longer endurance, heavier payloads |
| Community | Inventors share designs and critique | Faster collective development |
For more on how the name and early naming evolved, see naming a helicopter.
Early Twentieth-Century Experiments: Toward Powered Vertical Lift
That pivotal year delivered the first tethered and piloted hovers that shifted rotorcraft from theory to testable machines.
The Breguet Brothers’ Gyroplane No. 1 (1907)
On August 24, 1907, Louis and Jacques Breguet raised their tethered Gyroplane No. 1. Four large rotors, driven by roughly 45 horsepower, lifted the machine and proved a rotor system could carry an aircraft’s weight.
The tether restrained the craft but allowed engineers to measure lift, altitude attempts, and stability near the ground. Tests showed that engine power, rotor size, and structural layout all mattered for controlled flight.
Paul Cornu’s First Manned Hover (1907)
On November 13, 1907, Paul Cornu placed a pilot aboard and achieved the first manned hover. Two counter-rotating rotors and a 24-hp engine lifted the machine about half a meter for roughly 20 seconds.
The short duration still counted as an important record. It demonstrated that a pilot could ride a rotorcraft, even if control and vibration problems remained severe.
- Engine lessons: these flights showed that better engines and transmissions were essential.
- Control lessons: tethering limited risk but highlighted the need for improved stability systems.
- Design lessons: structural strength and power distribution to multiple rotors became clear priorities.
In sum, 1907 marked the year powered experiments proved feasible and exposed the gaps—engine power, control response, and structural design—that future inventors had to solve.
Control Breakthroughs: Boris Yuriev And Cyclic Pitch
In 1911 Boris Yuriev introduced a skew automaton that changed how a pilot controlled a rotor disk. The device allowed cyclic variation of blade pitch. That made it possible to tilt the rotor disk and point lift for real directional control.
Skew Automaton And The Birth Of Modern Control
The skew automaton linked pilot inputs to blade angle across the disk. By varying pitch as blades rotated, it produced forward, lateral, and yaw authority during hover and low-speed flight.
Why it mattered: cyclic control reduced uncontrolled drift near the ground and let a pilot manage attitude and direction with precision. It anticipated the swashplate mechanisms used in later helicopter designs.
- Enabled cyclic pitch changes across the rotor disk for true directional control.
- Connected pilot motion to blade angle, improving stability near the ground.
- Served as a foundational step toward modern swashplate systems and safer flight.
| Feature | Skew Automaton | Swashplate |
|---|---|---|
| Year | 1911 | Later adoption |
| Function | Cyclic pitch variation | Cyclic + collective coordination |
| Impact | Improved directional control | Reliable pilot control for operational aircraft |
Yuriev’s work marked a key step in rotorcraft development. Researchers and pilots used those lessons to move from short hovers to practical aircraft missions. For broader context on early inventions and later pilot techniques, see early rotorcraft evolution and guidance for the modern pilot transitioning to helicopter flying.
Multirotor Pathfinders: Pescara And Botezat
In the 1920s two inventors moved multirotor work from tests to notable demonstrations. Their machines explored alternative ways to cancel torque and improve control in early helicopter design.
Coaxial Rotors And World Records With Pescara
Raúl Pescara flew coaxial layouts that stacked two rotors on a single axis. The rotors turned in opposite directions to cancel tail torque, so no tail rotor was needed.
Pescara set endurance and altitude records for the era. His machine showed that counter‑rotating rotors could deliver steady lift and controlled flight with limited engine power.
George Botezat’s Quadrotor For The U.S. Army Air Service
American inventor George Botezat built a four‑propeller model with variable‑pitch propellers to manage attitude and translation.
The quadrotor proved controllability but also revealed weight and mechanical complexity. The device offered stability advantages yet required heavy structure and a complex control system.
- Key point: Pescara’s coaxial layout used counter‑rotation to eliminate tail torque.
- Key point: Botezat’s quadrotor demonstrated variable‑pitch control with four large propellers.
- Impact: Multirotor machines proved practical flight and influenced later manned craft and modern UAV designs.
Conclusion: Pescara and Botezat showed multiple rotors could fly under power. Their pathfinder work informed later aircraft and the multirotor layouts used in today’s drones.
Heinrich Focke And The First Practical Demonstrations
Heinrich Focke’s work delivered the clearest proof yet that rotorcraft could be controlled and useful. His machine combined deliberate design, predictable handling, and public flights that shifted opinion among pilots and engineers.
Focke‑Wulf Fw 61/Fa 61 Records And Controlled Flight
The Focke‑Wulf Fw 61 flew on June 26, 1936, with pilot Ewald Rohlfs at the controls. It set distance, altitude, and duration records that proved sustained, steerable flight was achievable.
The aircraft used lateral rotors mounted on outriggers and a refined control system. That layout gave stable handling and predictable response during takeoff, hover, and translation.
- The Fw 61 showed reliable, controlled flight beyond brief hops.
- Its outriggers and rotor integration delivered repeatable performance for pilots to trust.
- Public demonstrations validated altitude and speed claims before aviation audiences.
These demonstrations convinced many that routine helicopter operations were possible. Engineers then adapted Focke’s control philosophies in later aircraft, even when rotor arrangements changed. For a focused account of the Fa 61’s impact, see Focke‑Wulf Fa 61.
Igor Sikorsky’s Modern Template: VS‑300 To R‑4
Igor Sikorsky’s tests turned an experimental rotor concept into a reproducible, serviceable aircraft layout. Between 1939 and 1943 he refined the VS‑300 through repeated trials that focused on stability and control.
Single Main Rotor With Tail Rotor In Opposite Directions
Sikorsky settled on a single main rotor paired with a tail rotor that turned in the opposite direction to cancel torque. This approach gave the pilot reliable heading control and predictable handling.
Why it mattered: the tail balanced main rotor forces so pilots could hover, translate, and point the aircraft with confidence.
First Mass Production And U.S. Adoption
The VS‑300 development led directly to the Sikorsky R‑4. In 1942 the R‑4 became the first helicopter produced at scale in the United States.
That production run created the first operational fleet for service missions. Demonstrations, altitude records, and mission tests built trust among operators and policymakers.
- Standardized layout: single main rotor + anti‑torque tail.
- Operational proof: R‑4 entered service and expanded mission roles.
- Legacy: many later helicopters used Sikorsky’s template.
| Aspect | VS‑300 | R‑4 |
|---|---|---|
| Years | 1939–1943 | 1942 (production) |
| Main Feature | Prototype rotor and controls | Mass‑production service aircraft |
| Impact | Refined rotor/tail integration | First US operational helicopter fleet |
“Sikorsky’s work bridged experimental flight and dependable service helicopters used across missions and years.”
Engines And Power: From Piston To Turboshaft
Engine power limits long shaped which rotorcraft designs could lift people and payloads. Early models ran on springs, steam, and rubber bands; moving to internal combustion made manned flight possible. Power-to-weight ratios determined useful payload, endurance, and speed.
Why Engine Power-To-Weight Drove Helicopter Development
When engines were heavy and weak, aircraft stayed small and short‑ranged. Better engines let designers increase rotor size, add transmissions, and carry crew and supplies.
Key point: improved continuous power raised payload and altitude records while reducing weight penalties for larger airframes.
Turboshaft Revolution And NOTAR/Tip‑Jet Experiments
The turboshaft era began with practical prototypes like the Kaman K-225 in December 1951 and then scaled across models. Turboshafts supplied high continuous power with a favorable power-to-weight ratio and greater reliability than pistons.
Transmissions and reduction gears converted high engine RPM to rotor RPM while managing torque. Alternatives to a tail rotor emerged: Fenestron ducted fans, NOTAR’s directed-air jet, and tip-jet rotors such as the Sud-Ouest Djinn (cold tip jet) and the YH-32 Hornet (hot tip jet).
- Transmission design balanced engine output and rotor demands.
- Tip jets avoided main gearbox torque but traded efficiency and fuel use.
- NOTAR and Fenestron improved safety and noise profiles for certain roles.
Turboshaft power reshaped helicopter design, enabling machines to meet mission needs across civil and military development. Engines and power systems, in short, defined the aircraft’s performance envelope and every major step forward.
Rotor, Anti‑Torque, And Transmission Systems In Helicopter Design
A helicopter’s core systems marry spinning rotors with gears and controls to turn engine power into steady lift.

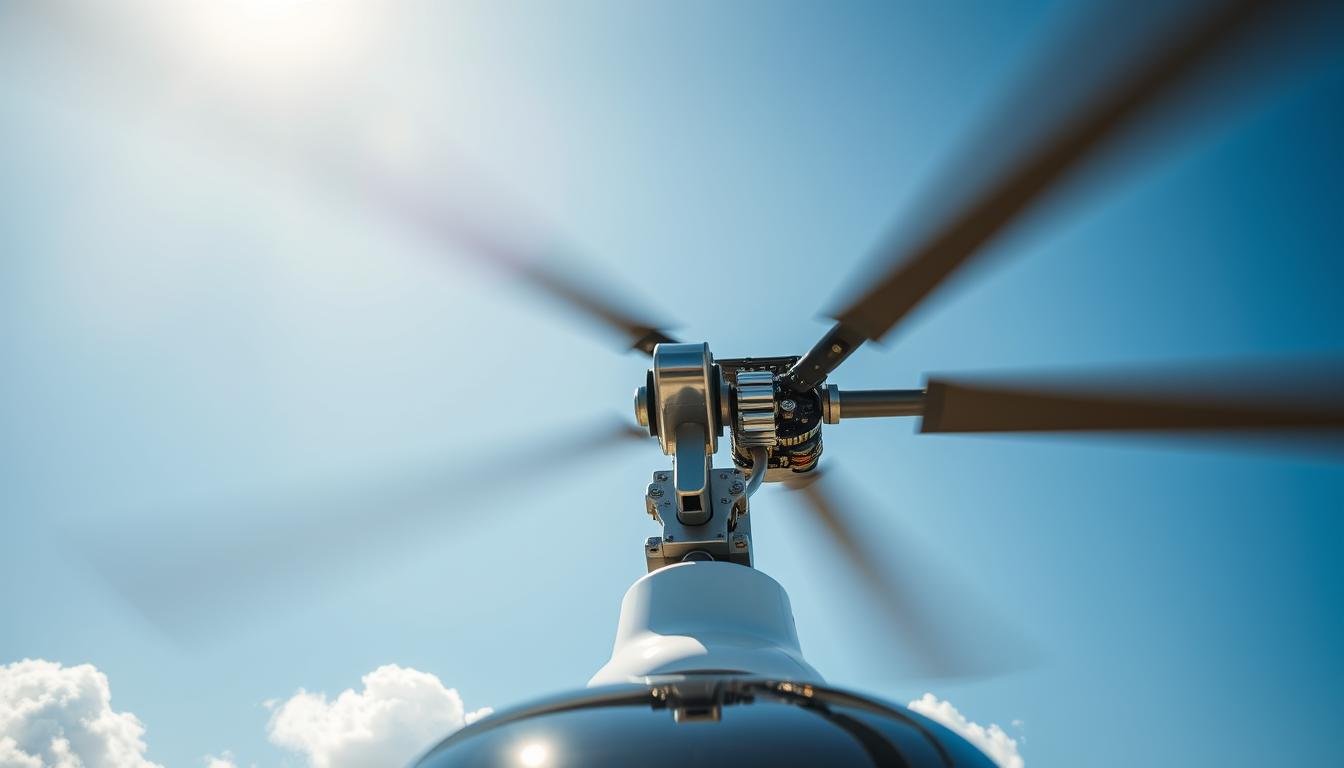

The rotor assembly includes a mast, hub, and blades. Main rotors supply most lift by changing blade pitch and RPM.
Main Rotor, Tail Rotor, And Alternative Anti‑Torque Systems
The main rotor creates lift through blade pitch, the rotor disc angle, and rotational speed. Small changes in pitch or RPM change lift and aircraft direction.
Anti‑torque keeps the fuselage from spinning. Traditional tail rotors provide yaw control, while Fenestron and NOTAR offer safer, quieter alternatives.
Transmissions, Reduction Gears, And Power Delivery
Transmissions convert high engine RPM to lower rotor RPM. Reduction gears match engine thousands of RPM to rotor hundreds of RPM for efficient lift.
Freewheeling clutches let the rotor autorotate if the engine stops. This feature gives the pilot a chance to land safely during engine failure.
Flight Controls: Cyclic, Collective, Pedals, And Throttle
Cyclic tilts the rotor disk to point lift and move the aircraft in a chosen direction. Collective changes blade pitch for climb or descent.
Pedals control yaw via the tail or alternative anti‑torque systems. The throttle holds rotor RPM within narrow limits to sustain lift and avoid control loss.
- Lift Dependency: Blade pitch, RPM, and aerodynamic efficiency set usable lift.
- Anti‑Torque Options: Tail rotor, Fenestron, NOTAR each trade safety, complexity, and noise.
- Power Path: Engine → transmission → rotor; clutches protect autorotation capability.
- Pilot Coordination: Cyclic, collective, pedals, and throttle must be used together for precise flight near ground and in forward motion.
| System | How It Counters Torque | Safety / Noise | Typical Use |
|---|---|---|---|
| Tail Rotor | Provides lateral thrust opposite main rotor torque | Exposed; louder but simple | Most light to medium helicopters |
| Fenestron | Ducted fan in tailboom for anti‑torque and control | Quieter and safer for ground crew | Medium helicopters, urban roles |
| NOTAR | Uses directed air to create counter‑moment without an external rotor | Low noise; complex airflow control | Specialized low‑noise applications |
“Integrated systems engineering links power, control, and structure into a cohesive aircraft.”
Iconic Models And Missions: From The R‑4 To The Huey
Early service helicopters moved quickly from test beds to life‑saving roles on the battlefield.
Wartime Utility And Medical Evacuation
The Sikorsky R‑4 became the first production aircraft in 1942 and entered U.S. service. That model proved a helicopter could perform rescue, liaison, and short cargo missions under combat conditions.
Helicopters cut time to treatment. Medics reached wounded troops where fixed‑wing craft could not land.
Bell UH‑1 Iroquois And The Jet Turbine Era
The Bell UH‑1 “Huey” brought turbine engines to broad use in the 1950s–60s. Turbine power gave greater reliability, payload, and speed than piston engines.
In Vietnam the Huey changed tactics: rapid troop moves, fast medevac, and better high‑altitude performance. Pilots trusted its engine response and improved transmission systems in harsh conditions.
| Feature | Sikorsky R‑4 (1942) | Bell UH‑1 Iroquois (1950s–60s) |
|---|---|---|
| Main Role | Rescue, liaison | Troop transport, medevac |
| Powerplant | Piston engine | Turboshaft engine |
| Operational Impact | First production service record | Expanded range, payload, and mission speed |
| Legacy | Proved utility in wartime | Established modern combat aviation roles |
“These models showed the unique value of rotorcraft and set patterns of use that endured in later fleets.”
Helicopter Configurations And Roles Across Aviation
Different rotor layouts gave engineers ways to trade speed, load capacity, and agility. The choice of layout shaped how an aircraft met mission demands, from offshore transport to search and rescue.
Monorotor, Tandem, Transverse, Coaxial, And Synchropter
The single main rotor with a tail remained the most common helicopter design for balance and simplicity. Tandem and transverse layouts split lift across two large rotors to carry heavier loads and boost stability.
Coaxial rotors share an axis to cancel torque without a heavy tail. Intermeshing or synchropter systems improved compactness and control in tight spaces.
Tiltrotor And Compound Concepts For Speed And Range
Tiltrotors blend rotor lift with airplane forward flight by rotating the rotors and using wings to offload the rotor at high speed. Compound helicopters add auxiliary propulsion or wings to raise cruise speed and extend range.
Tail systems vary by configuration; some designs reduce or remove the need for a tail rotor. Matching layout to role—transport, SAR, offshore, or special ops—lets designers optimize lift, direction, and performance for each mission.
Modern Trajectory: Avionics, Autonomy, And Urban Air Mobility
Avionics and electric power are driving a new era in vertical aviation. Modern work blends fly-by-wire controls, quieter propulsion, and rigorous system safety to meet urban demands.
Fly-By-Wire, Electric/Hybrid Power, And Quiet Operations
Fly-by-wire systems give pilots envelope protection and reduce workload. They also enable smoother handling when complex control laws coordinate rotor inputs and stability aids.
Electric and hybrid engines aim to cut emissions and noise while keeping sufficient rotor power for safe flight. Designers balance battery energy, generator output, and engine range to meet speed and time needs.
Urban air mobility concepts demand low sound footprints and redundant systems for dense-area operations. Manufacturers test layered safety and fail‑safe architectures before approving passenger models.
Drones, Multirotors, And Emerging Use Cases
Multirotors proved control strategies for many modern UAV roles. Quadcopters, first shown in early 1900s France, exploded into commercial and military use when electronics and small engines matured.
Lessons from drone flight inform passenger aircraft models: distributed rotors, advanced flight control, and rapid redundancy checks translate into safer designs for city routes.
- Avionics: improved handling qualities and flight envelope protection.
- Propulsion: electric/hybrid power shapes speed and range trade-offs.
- Use cases: delivery, inspection, urban air taxis, and emergency response.
| Focus | Impact | Design Response |
|---|---|---|
| Noise & Emissions | Community acceptance | Electric propulsion, low-noise rotors |
| Safety | Regulatory limits | Redundancy, fly-by-wire |
| Range & Speed | Route viability | Hybrid engines, battery optimization |
In short, modern helicopter development extends helicopter design into new models and missions while respecting urban constraints. For more on technical progress and emergency use cases, see helicopter technology advancements.
Conclusion
The long arc from toys and sketches to service models shows how steady invention changed flight. Key milestones — the Fw 61, VS‑300, the R‑4 and turbine UH‑1 — proved that careful design, engines, and controls could make a reliable helicopter for real missions.
Centuries of inventors and engineers combined experiments, tests, and refinements. Their work improved rotor systems, transmissions, and pilot controls so aircraft could lift, hover, and move with purpose in air and on missions worldwide.
Today, development continues toward quieter, cleaner, and more capable air mobility. The story shows that thoughtful design and steady progress across years deliver lasting gains for aviation and society.
FAQ
What milestones shaped the development of vertical flight?
Key milestones include early rotor toys and the 1784 Paris Academy demonstration, Leonardo da Vinci’s aerial screw sketches, Mikhail Lomonosov’s counter‑rotating spring models, 19th‑century rotor experiments, the Breguet brothers’ gyroplane and Paul Cornu’s 1907 hover, Boris Yuriev’s cyclic‑pitch control work, Juan de la Cierva’s autogyro foundations influencing rotorcraft control, multi‑rotor pioneers like Raúl Pateras Pescara and George Botezat, Heinrich Focke’s Fw 61 demonstrations, and Igor Sikorsky’s VS‑300 leading to the R‑4 mass‑produced helicopter. These breakthroughs advanced rotors, control systems, engines, and production techniques.
Who is credited with creating the first practical helicopter layout?
Igor Sikorsky is widely credited for developing the practical single main rotor with a tail rotor arrangement. His VS‑300 proved effective control and stability, and the subsequent R‑4 became the first mass‑produced helicopter adopted by the U.S. Army Air Forces.
How did Leonardo da Vinci influence rotorcraft design?
Leonardo da Vinci’s aerial screw sketches introduced the helix concept and explored lift from rotary motion. Though unpowered with Renaissance materials and engines, his ideas contributed lasting vocabulary and inspired later engineers to experiment with rotors and lift mechanisms.
What role did engines play in helicopter evolution?
Engine power‑to‑weight ratio proved critical. Early piston engines limited payload and sustained lift. The advent of lightweight turboshaft engines in the mid‑20th century increased power, reliability, and range, enabling larger missions and the jet turbine era exemplified by models like the Bell UH‑1.
How do helicopters manage torque and directional control?
Helicopters use anti‑torque systems to counter main rotor torque. The conventional solution is a tail rotor that provides lateral thrust. Alternatives include coaxial rotors, tandem rotors, intermeshing rotors (synchropter), NOTAR systems, and tip‑jet concepts. Collective, cyclic, and pedals let pilots control lift, attitude, and yaw.
What is cyclic pitch and why is it important?
Cyclic pitch varies each rotor blade’s angle during rotation to tilt the rotor disc and produce directional thrust. This breakthrough gave pilots precise control for forward flight, hovering, and maneuvers, and it underpins modern helicopter handling and stability.
Which early inventors demonstrated manned vertical lift before Sikorsky?
Notable early experimenters include Paul Cornu, who achieved a brief tethered manned hover in 1907, the Breguet brothers with their 1907 gyroplane experiments, and multi‑rotor inventors like Raúl Pateras Pescara and George Botezat who built manned prototypes and set early records.
What configurations do helicopters use and what are their advantages?
Common configurations include single main rotor with tail rotor (simple, proven), tandem rotors (high lift, good payload), coaxial rotors (compact, high lift without tail rotor), transverse rotors, and intermeshing rotors (good for stability). Tiltrotor and compound designs trade vertical lift for higher cruise speed and range.
How did multirotor pioneers influence modern drones and air mobility?
Early multirotor work demonstrated stability and redundancy in vertical lift. Innovations by Pescara and others informed modern control laws, while advances in avionics, electric propulsion, and flight control enabled today’s drones and the emerging urban air mobility sector using multirotor and tiltrotor concepts.
What safety and maintenance challenges are unique to helicopters?
Helicopters require rigorous rotor, transmission, and engine inspections due to high vibration and mechanical loads. Control system integrity, tail rotor checks, and gearbox health are critical. Pilots also manage unique aerodynamic phenomena like retreating blade stall and vortex ring state through training and operational limits.
How did military needs accelerate helicopter adoption?
Military demand for reconnaissance, medevac, troop lift, and logistics drove rapid development and mass production. World War II and Korea highlighted rotary‑wing utility, and the Vietnam War showcased the helicopter’s role in air mobility, driving turbine adoption and models like the Bell UH‑1.
What technological trends shape the future of rotary‑wing flight?
Trends include fly‑by‑wire and advanced flight control systems, electric and hybrid propulsion for lower noise and emissions, autonomous operations, improved avionics, and quieter rotor designs. These advances aim to expand use cases from urban air taxis to long‑range logistics while improving safety and efficiency.tion, and beyond. As technology continues to evolve, the future of rotary-wing aircraft promises even more exciting innovations.
Related Articles
- How Helicopters Revolutionized Emergency and Rescue Operations
- Helicopter Milestones: Important Breakthroughs in Aviation History
- Iconic Helicopters That Shaped the Future of Aviation
- The Role of Helicopters in World War II and Beyond
More from This Category
- Top 10 Helicopter Facts You Probably Didn’t Know
- Military Helicopters Through History: Key Models and Their Impact
- How Helicopters Work: The Science Behind Vertical Flight
- Who Invented the Helicopter? A Look at the Pioneers Behind Rotary Flight
- Helicopter Evolution: How Rotary-Wing Aircraft Changed Aviation Forever
- The Fascinating History of Helicopters: From Invention to Modern Aviation
